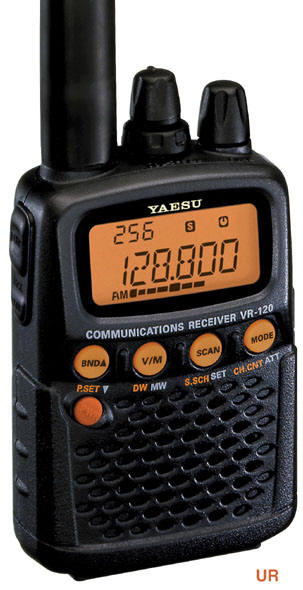

Yaesu VR-120

VR-120 VR-120D

Type:	HF/VHF/UHF receiver/scanner
Frequency range:	0.1-1300 MHz (Cellular blocked in the US)
Mode:	AM/FM/WFM
Sensitivity:	N/A
Selectivity:	N/A
Image rejection:	N/A
Voltage:	2.2-3.5 VDC (2*R6/AA)
Current drain:	15-95 mA
Impedance:	50 ohms, BNC
*Dimensions (WHD):*	598526 mm
Weight:	195 gr
Manufactured:	Japan, 2000-2001 (Discontinued)

VR-120 Commander
Programming software for the Yaesu VR-120 and VR-120D.
Features:

Edit/Move/Cut/Copy/Paste main memory channels/banks

Many Set Mode Settings

Band Limit Search Memories

Supports .tk1 files from tk120, and tk120 CSV files.

Currently, only the US version of the VR-120 is supported.

Allegati:
VR-120 - user manual	640 kB
Programming software for the Yaesu VR-120 and VR-120D	249 kB
