The Yaesu FC-30 Tuner covers 1.8 - 30 and 50-54 MHz, handling up to 100 watts with a VSWR of 1.5:1 or less. Tuneup power is 4 to 60 watts and tuning takes 5 seconds or less. There are 100 impedance matching memories. This tuner pulls the required 13.7 VDC directly from the transceiver. The impedance matching is 16.5 to 150 ohms and accordingly, the FC-30 should not be expected to match "long wire" type antennas unless specific steps have been taken in the design of the antenna to insure it is within these specifications.
Internal DIP switches permit you to clear memories and/or have the tuner operate during receive. Click here to view interconnect diagram.

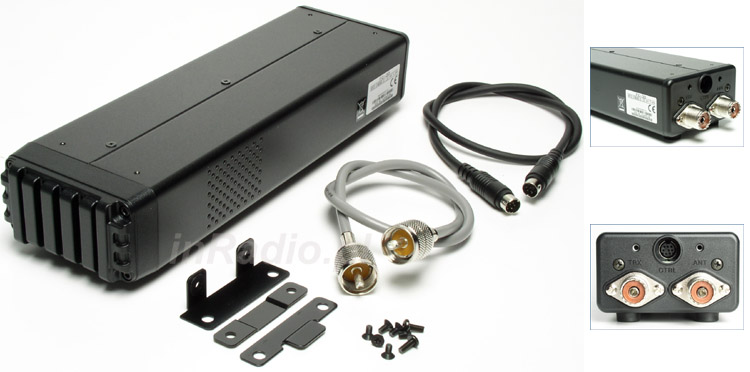

The FC-30 comes with a 2 foot (0.45m) coaxial cable, 2 foot (0.45m) control cable and mounting screws. Size: 3.1 x 1.8 x 10.2 inches (80x45x260mm) 2.2 Lbs (1 kg).
 FC-30 - manuale utente italiano | 707 kB |
| Yaesu_FC-30_user_manual.pdf | 1065 kB |
