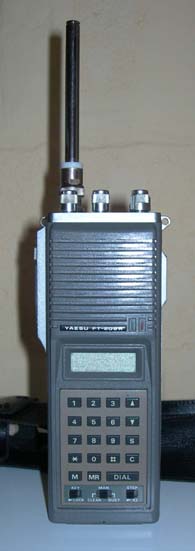

Yaesu FT-208R - RICETRASMETTITORE PORTATILE VHF



Type: Amateur VHF transceiver
Frequency range: 144-146 MHz (Europe)
144-148 MHz (USA)
Mode: FM
RF Power output: Hi 2.5 W
Lo 0.3 W
Receiver system: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 10.8 VDC (Max 13.0 VDC)
Current drain: RX: Max 150 mA
TX: Max 700 mA
Impedance: 50 ohms, BNC
Dimensions (W*H*D): 61*168*49 mm
Weight: 720 gr
Manufactured: 1981-198x (Discontinued)





Allegati:
Scarica questo file (FT-208R_schema.pdf)FT-208R - schema387 kB
Scarica questo file (FT-208R_user_manual.pdf)FT-208R - user manual2167 kB
