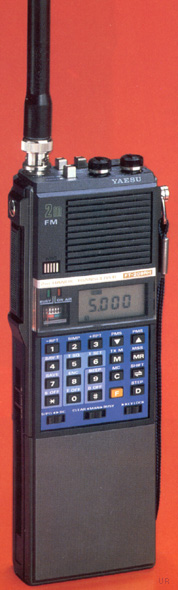

Yaesu FT-209R - RICETRASMETTITORE PORTATILE VHF
| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz (12.5 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi 3.5 W Lo 350 mW |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 10.8 VDC |
| Current drain: | RX: Max 150 mA TX: Max 650 mA |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 65*168*34 mm |
| Weight: | ? gr |
| Manufactured: | 1985-198x (Discontinued) |
| Other: | 10 memories |
 FT-209RH - mod | 0.7 kB |
 FT-209R - service manual | 11829 kB |
| FT-209 - user manual | 9179 kB |
