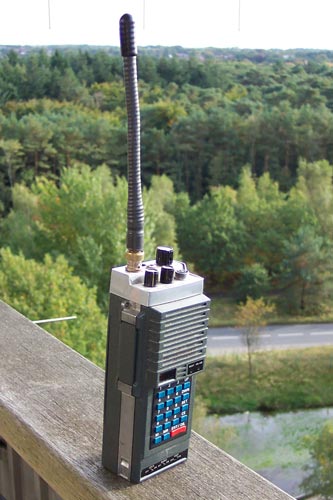

Yaesu FT-207R - RICETRASMETTITORE PORTATILE VHF



Type: Amateur VHF transceiver
Frequency range: Europe: 144-146 MHz (12.5 KHz steps)
USA: 144-148 MHz (10 KHz steps)
Mode: FM
RF Power output: Hi 2.5 W
Lo 0.2 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 10.8 VDC +/-10%
Current drain: RX: 45-150 mA
TX: 250-800 mA
Impedance: 50 ohms, BNC
Dimensions (W*H*D): 68*181*54 mm
Weight: 680 gr with batteries
Manufactured: Japan, 1979-19xx (Discontinued)
Other:

Four memories, scanning. CTCSS option

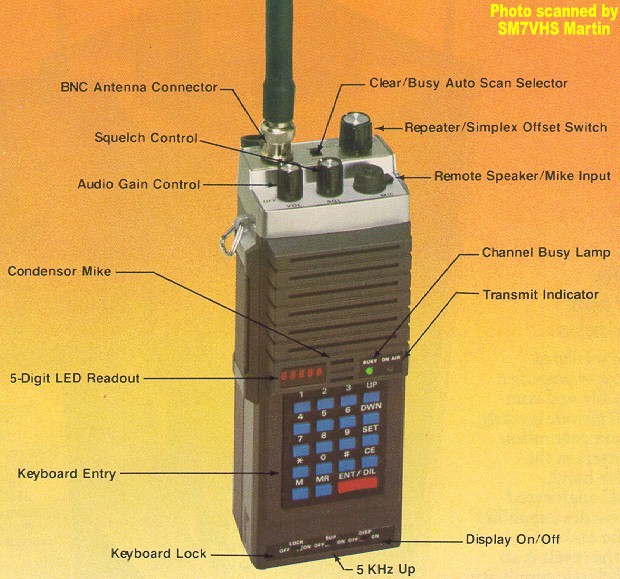

ft-207r_b

Allegati:
Scarica questo file (FT-207R_schema_A-D-E.pdf)FT-207R - schema251 kB
Scarica questo file (FT-207R_user.pdf)FT-207R - user manual5798 kB
