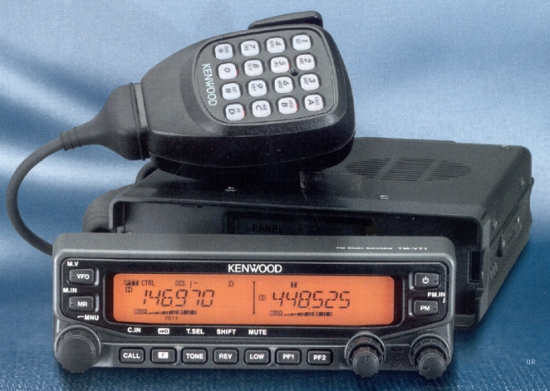

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz RX: 118-524 / 800-1300 MHz |
| Mode: | TX: FM RX: AM/FM |
| RF Power output: | Hi: 50/50 W Mid: 10/10 W Lo: 5/5 W |
| Sensitivity: | <0.16 uV (12 dB SINAD) |
| Selectivity: | 11 KHz (-6 dB), 30 KHz (-50 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A TX: 4-13 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | Body: 140*43*181 mm Panel: 140*43*38 mm |
| Weight: | 1.5 Kg |
| Manufactured: | 2007-200x |
| Other: | CTCSS/DCS. Digital voice recorder option. Twin RX |
 TM-V71 - manuale utente in italiano | 2722 kB |
| TM-V71 - user manual | 4381 kB |
| TM-V71_adj_procedure.pdf | 1496 kB |
| TM-V71_schematic_diagram.pdf | 1467 kB |
