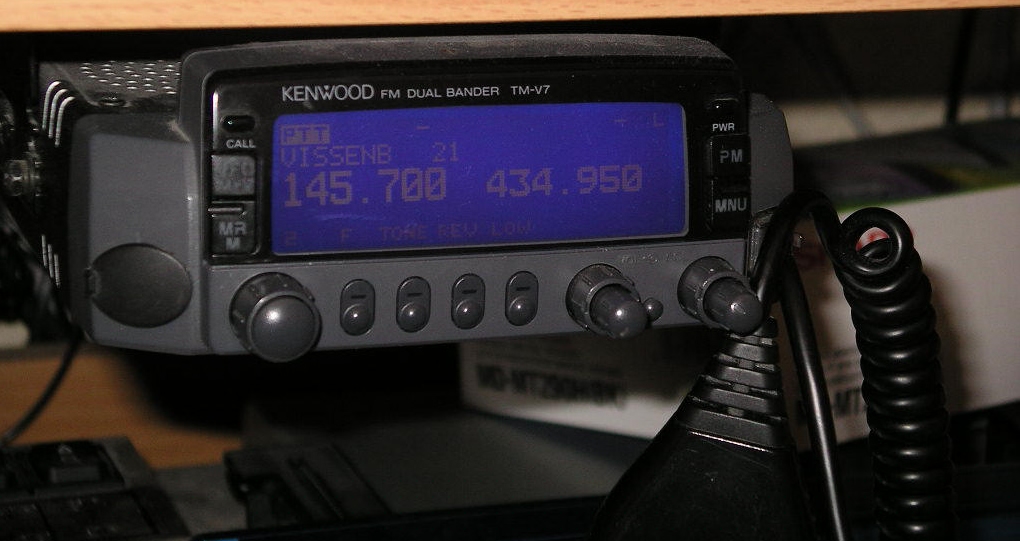

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-146 / 430-440 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50/35 W Mid: 10/10 W Lo: 5/5 W |
| Sensitivity: | <0.16 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB), 28 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 1 A TX: Max 11 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 140*40*189 mm |
| Weight: | 1.2 Kg |
| Manufactured: | 199x-xxxx |
| Other: | 9k6 packet ready. 280 memories. Alpha tags. Twin RX |
| Related documents: |
 TM-V7 - service manual english | 2695 kB |
| TM-V7 - manuale utente in italiano | 4582 kB |
| TM-V7_user_manual.pdf | 2435 kB |
