| Type: | HF receiver |
| Frequency range: | A: 0.55 - 1.6 MHz B: 1.6 - 4.8 MHz C: 4.8 - 14.5 MHz D: 10.5 - 30 MHz |
| Mode: | AM/SSB/CW |
| Receiver system: | Single conversion superheterodyne IF: 455 KHz |
| Sensitivity: | Band A, B & C: <6 dB (10 dB S/N) Band D: <18 dB (13 MHz), <10 dB (28 MHz) |
| Selectivity: | 10 KHz (-50 dB) |
| Image rejection: | N/A |
| Voltage: | Mains, 110-120 / 220-240 VAC |
| Power consumption: | 45 W |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 381*178*254 mm |
| Weight: | 8.53 Kg |
| Manufactured: | Japan, 1968-1969 (Discontinued) |
| Other: | Bandspread on ham bands. ANL and AVC. Tubes |

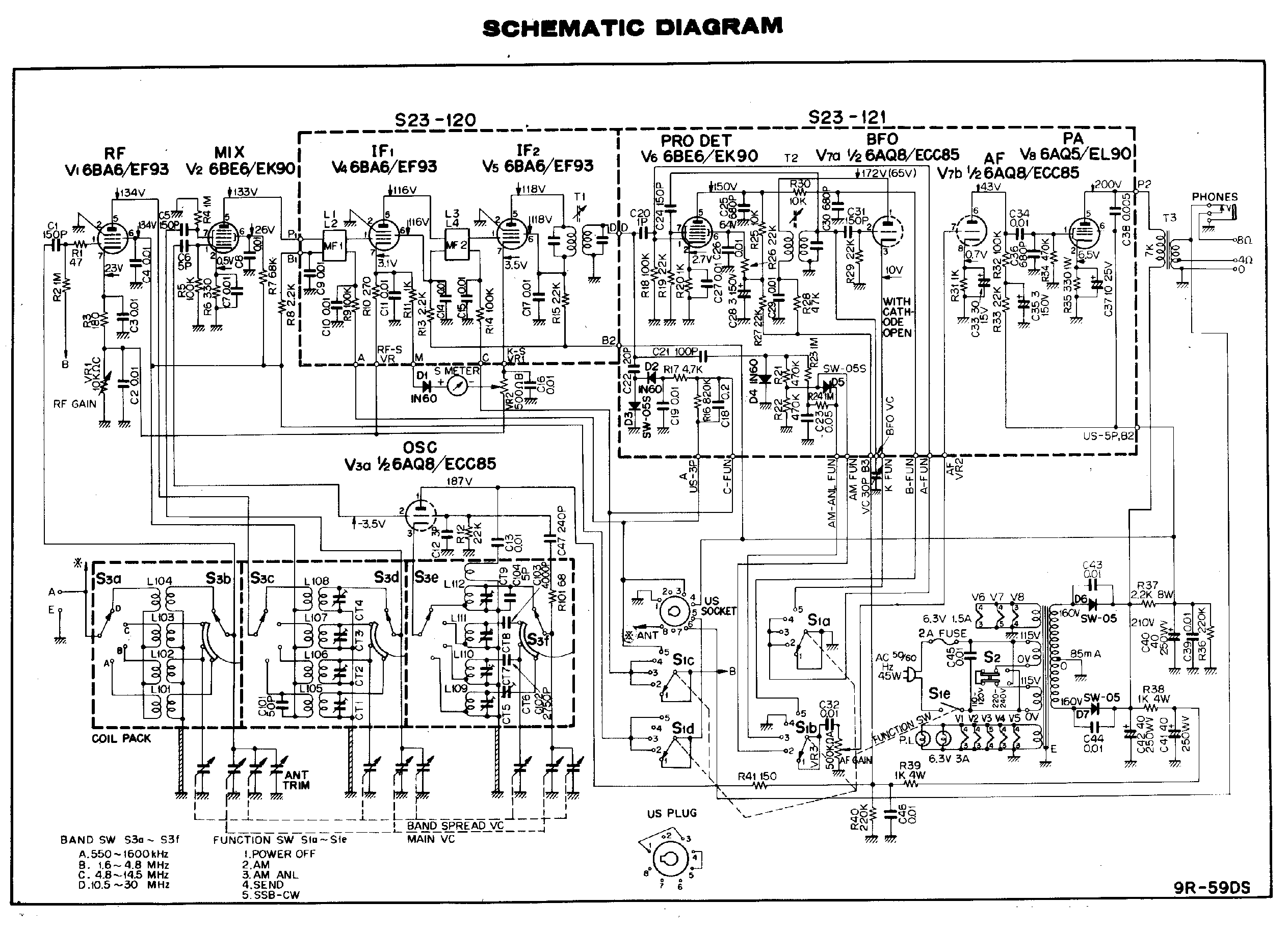

 9r-59ds_schematic.gif | 139 kB |
 9R-59DS_user_manual.pdf | 2131 kB |
