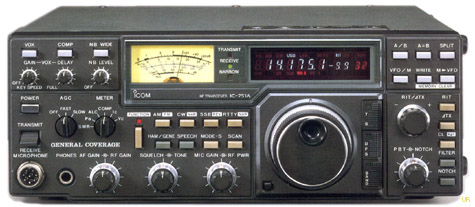

| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.1-30 MHz |
| Mode: | AM/FM/SSB/CW/RTTY |
| RF Power output: | 100 W (100% duty cycle) |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: ? mA TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | Japan, 1985-1991 (Discontinued) |
| Other: | This A-model includes some improvements from the previous version, but it still have the battery-backed BIOS-RAM. Special procedure to replace the battery, or the radio will die! New price february 1986 in Sweden: 14500:- SEK |
 IC-751 - user manual | 9062 kB |
| IC-751A_manuale_utente_italiano.pdf | 9005 kB |
| IC-751_service_manual.pdf | 30924 kB |
