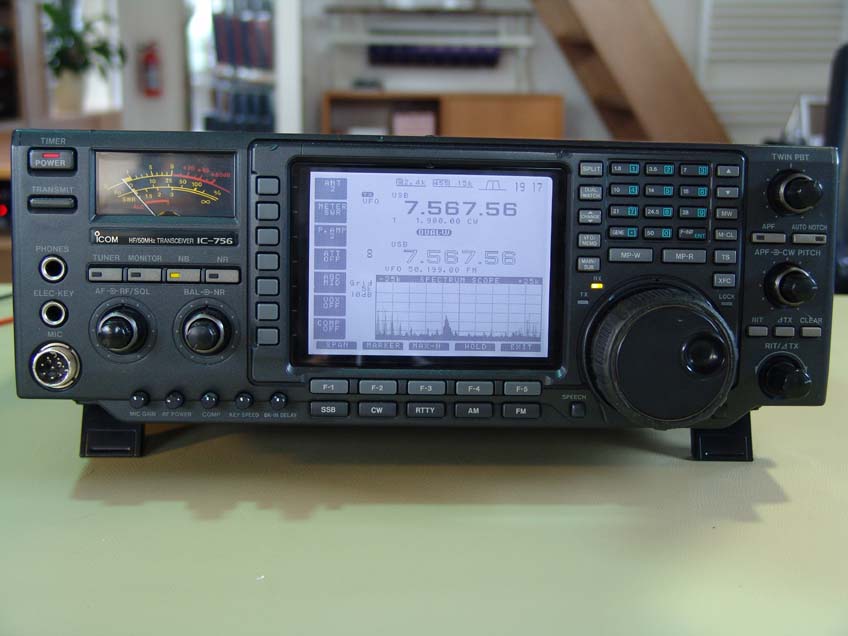

| Type: | Amateur HF/VHF transceiver |
| Frequency range: | 10-160 m + WARC/6 m |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | 5-100/5-100 W (5-40/5-40 W AM) |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: ? A TX: Max ? A |
| Impedance: | 50 ohms, 2*SO-239 |
| Dimensions (W*H*D): | 340*111*285 mm |
| Weight: | 9.3 Kg |
| Manufactured: | Japan, 1996-2000 (Discontinued) |
| Other: | DSP, Twin RX |
 756_block_diagram.PDF | 246 kB |
| 756_service_manual.pdf | 47637 kB |
| IC-756_schematic_diagram.pdf | 2167 kB |
| IC-756_user_manual.pdf | 1364 kB |
