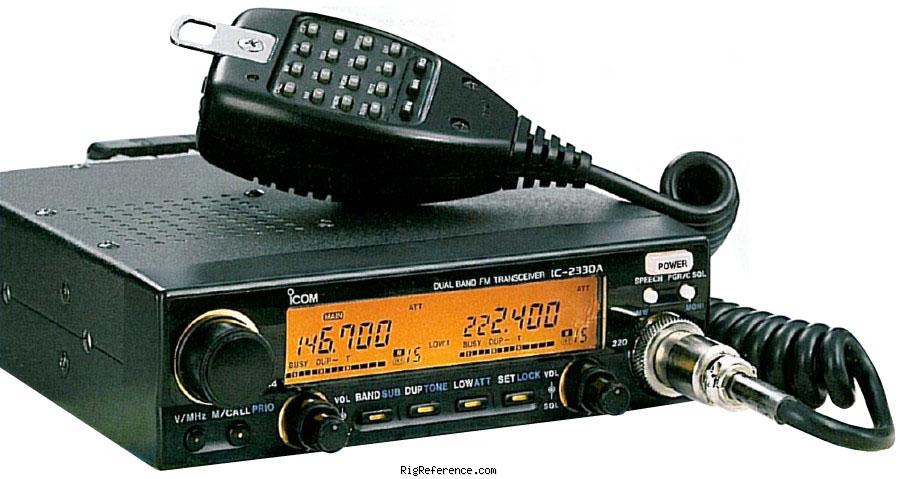

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-148 / 222-225 MHz RX: 136-174 / 222-225 MHz (5 / 10 / 12.5 / 15 / 20 / 25 KHz steps) |
| Mode: | FM (15 KHz BW) |
| RF Power output: | Hi: 45/25 W Mid: 10/10 W Lo: 5/5 W |
| Receiver system: | Dual conversion superheterodyne 1st IF: 17.2 MHz (145 MHz) 1 st IF: 21.8 MHz (220 MHz) 2nd IF: 455 KHz |
| Sensitivity: | Less than 0.16 uV for 12 dB SINAD |
| Selectivity: | >15 KHz (-6 dB) <30 KHz (-60 dB) |
| Image rejection: | 60 dB |
| Voltage: | 13.8 VDC +/-15% |
| Current drain: | RX: 1.2-1.8 A TX: 4-10.5 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 140*40*165 mm |
| Weight: | 1.25 Kg |
| Manufactured: | Japan, 19xx-19xx (Discontinued) |
| Other: | 2*18 memories. Twin RX |
 IC-2330_user_manual.pdf | 4134 kB |
