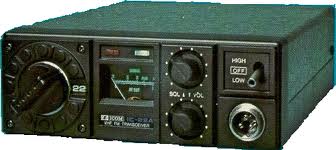

| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz (5 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 10 W Lo: 1 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 500 mA TX: Max 2.3 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 156*58*218 mm |
| Weight: | 1.7 Kg |
| Manufactured: | Japan, 1981-198x (Discontinued) |
 IC22U_IC24E-G_user_manual.pdf | 3551 kB |
