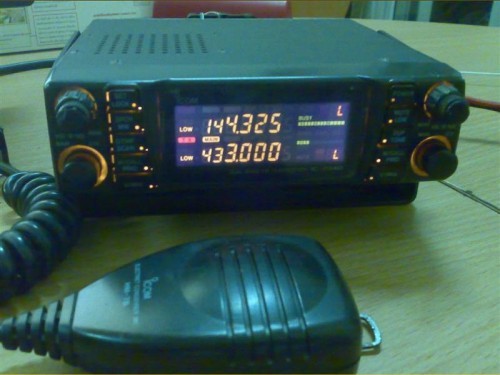

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-146 / 430-440 MHz (Europe) 144-148 / 440-450 MHz (USA) |
| Mode: | FM |
| RF Power output: | Hi: 45/35 W Mid: 10/10 W Lo: 5/5 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A TX: Max ? A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 140*40*165 mm |
| Weight: | 1.3 Kg |
| Manufactured: | Japan, 1994-19xx (Discontinued) |
| Other: | Twin RX New price 1994 in Sweden: 9100:- SEK |
 IC-2340H_modifications.zip | 261 kB |
 IC-2340H_service_manual.pdf | 25902 kB |
