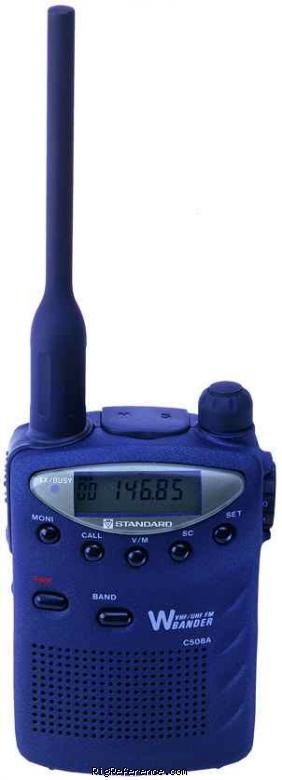

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz RX: 100-180 / 640-480 / 800-999 MHz |
| Mode: | TX: FM (15 KHz) RX: AM/FM |
| RF Power output: | 280 mW |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 2.4-3 VDC (2*R6/AA) |
| Current drain: | RX: ? mA TX: Max ? A |
| Impedance: | 50 ohms, SMA |
| Dimensions (W*H*D): | 64*95*29 mm |
| Weight: | 180 gr |
| Manufactured: | Japan, 1995-199x |
| Other: | 60 memories. CTCSS/PL New price 1997 in Sweden: 2600:- SEK |
 Standard_C508_user.pdf | 1434 kB |
