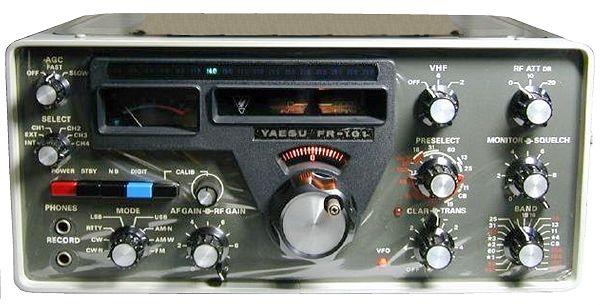

ricevitore HF
| Type: | HF receiver |
| Frequency range: | 10-160 m / 8 * BC-bands |
| Mode: | AM/FM/SSB/CW/RTTY |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC or mains |
| Current drain: | Max ? mA @ 13.8 VDC |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | Japan, 19xx-19xx (Discontinued) |
 FR-101_schematic_diagram.pdf | 747 kB |
| FR-101_user_manual.pdf | 3558 kB |
