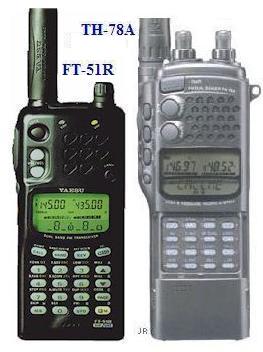

Portatile VHF/UHF
Type: | Amateur VHF/UHF transceiver |
Frequency range: | TX: 144-146 / 430-440 MHz (Europe) TX: 144-148 / 430-450 MHz (USA) RX: 110-180 / 420-470 MHz |
Mode: | TX: FM RX: AM/FM |
RF Power output: | 20 mW-5 W |
Receiver system: | N/A |
Sensitivity: | N/A |
Selectivity: | N/A |
Image rejection: | N/A |
Voltage: | 4-12 VDC |
Current drain: | RX: Max 16-195 mA TX: Max 1.9 A |
Impedance: | 50 ohms |
Dimensions (W*H*D): | 57*123*27 mm (with FNB-31) |
Weight: | 330 gr (with FNB-31 and antenna) |
Manufactured: | 1995-199x (Discontinued) |
Other: | DTMF, CTCSS. 120 memories. Spectrascope display Alpha tags. Twin RX. |
