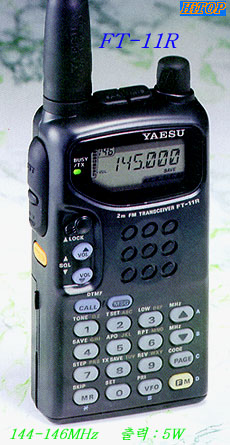

Yaesu FT-11R - RICETRASMETTITORE PORTATILE VHF


Type: Amateur VHF transceiver
Frequency range: TX: 144-146 MHz (Europe)
TX: 144-148 MHz (USA)
RX: 110-180 MHz
Mode: TX: FM
RX: AM/FM
RF Power output: Hi: 5 W
Lo: 0.3 W
Receiver system: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 4-12 VDC
Current drain: RX: Max 140 mA
TX: Max 1.5 A
Impedance: 50 ohms
Dimensions (W*H*D): 57*102*26 mm (with FNB-31)
Weight: 280 gr (with FNB-31)
Manufactured: 1993-199x (Discontinued)
Other: Keyboard
New price 1995 in Sweden: 4075:- SEK



Allegati:
Scarica questo file (ft-11r.jpg)FT-11 - schema47 kB
Scarica questo file (FT-11R_user_manual.pdf)FT-11R - user manual5434 kB
Scarica questo file (FT-11_mod.zip)FT-11 - mod2 kB
