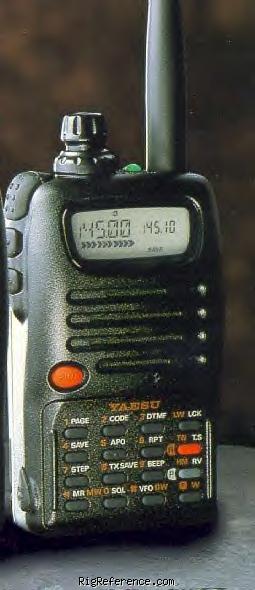

Yaesu FT-10R - PORTATILE VHF
| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz RX: 140-174 MHz |
| Mode: | FM |
| RF Power output: | 5 / 2.8 / 1 / 0.1 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 4-16 VDC |
| Current drain: | RX: Max 200 mA TX: Max 1.2 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 57*99*30 mm |
| Weight: | 325 gr |
| Manufactured: | 1995-20xx (Discontinued) |
| Other: | New price 1995 in Sweden: 2990:- SEK |
 FT-10 e FT-40 - user manual | 3033 kB |
| FT-10 - schema | 364 kB |
| FT-10R e FT40R - manuale utente italiano | 10259 kB |
