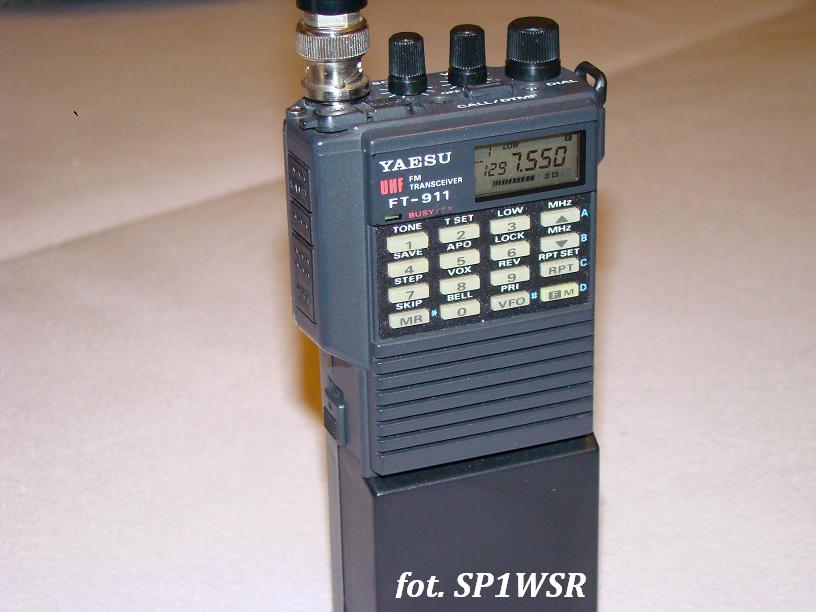

FT-911



Type: Amateur UHF transceiver
Frequency range: 1240-1300 MHz (10/12.5/20/25 KHz steps)
Mode: FM
RF Power output: Hi: 1 W
Lo: 100 mW
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 5.5-15 VDC
Current drain: RX: 11-150 mA
TX: Max 900 mA
Impedance: 50 ohms, BNC
Dimensions (W*H*D): 55*139*32 mm (with FNB-10)
Weight: 430 gr (with FNB-10)
Manufactured: Japan, 1990-199x (Disco



Allegati:
Scarica questo file (ft911_manual.zip)ft911_manual.zip10654 kB
