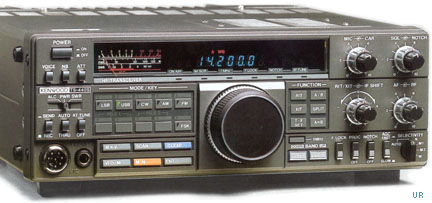

| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.15-30 MHz |
| Mode: | AM/FM/SSB/CW/FSK |
| RF Power output: | Max 100 W (AM: 50 W) |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 12-16 VDC |
| Current drain: | RX: 1.9 A TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 270*96*313 mm |
| Weight: | 6.3 Kg |
| Manufactured: | Japan, 1986-19xx (Discontinued) |
| Other: | Auto-AT option. New price 1988 in Sweden: 13100:- SEK |
 TS-440S_service_manual.pdf | 14508 kB |
| TS-440S_user_manual.pdf | 5052 kB |
 TS-440_modifiche.zip | 2818 kB |
| TS-440 - Manuale in italiano | 1845 kB |
