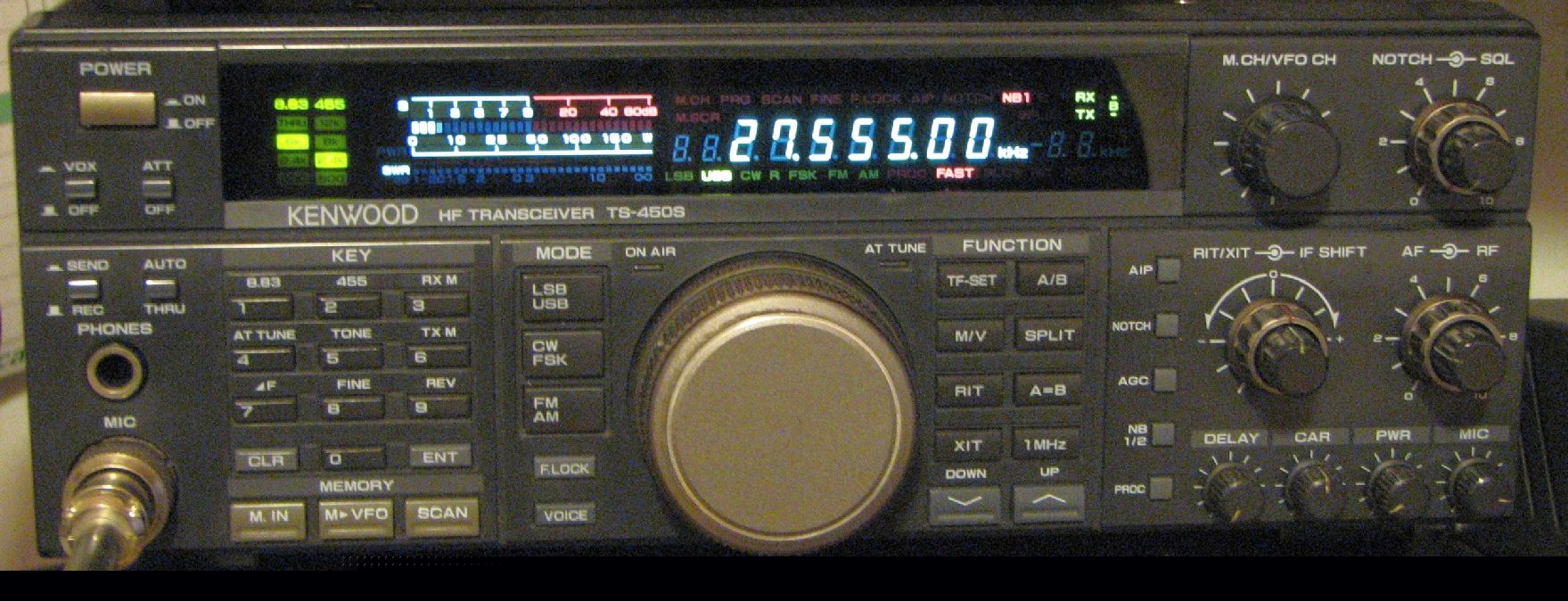

| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.5-30 MHz |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | Max 100 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: ? A TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 270*96*305 mm |
| Weight: | 7.5 Kg |
| Manufactured: | 198x-199x (Discontinued) |
 TS-450S_690S_service_manula.pdf | 34699 kB |
| TS-450S_690S_user_manual.pdf | 4551 kB |

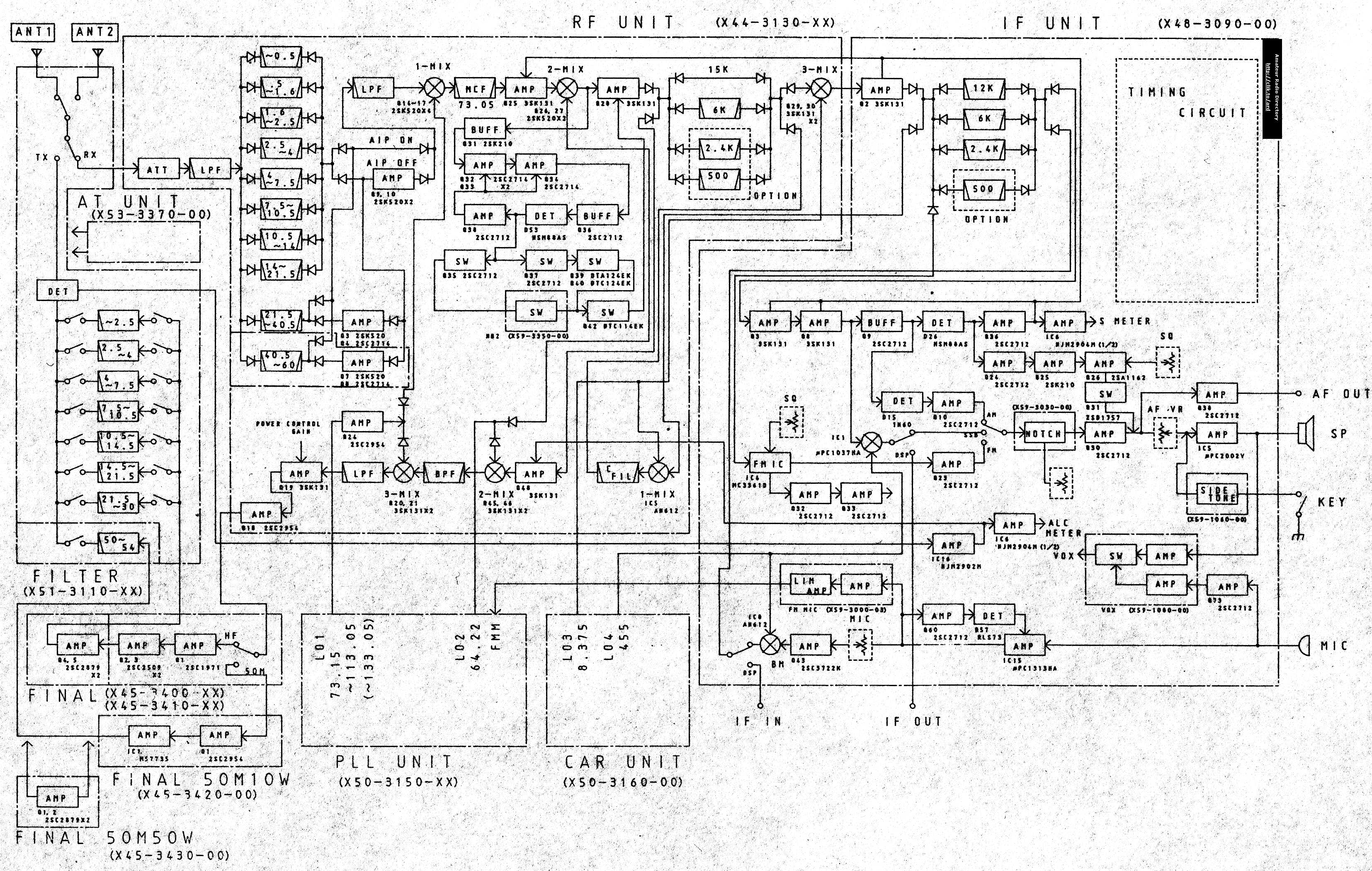

 TS-450S_block_diagram.jpg | 1354 kB |
 TS-450S_connectors.zip | 57 kB |
| TS-450S_modifications.zip | 0.9 kB |
| TS-450S_schematic_diagram.pdf | 750 kB |
| TS-450_manuale_utente_italiano.pdf | 19128 kB |
