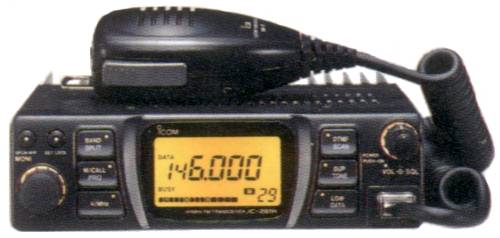

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz (Europe) TX: 144-148 MHz (USA) RX: 136-174 / 400-479 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50 W Mid: 10 W Lo: 5 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 1 A TX: Max 10.5 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*40*171 mm |
| Weight: | 930 gr |
| Manufactured: | Japan, 1994-199x (Discontinued) |
| Other: | 9K6 packet ready New price 1994 in Sweden: 5695:- SEK |
 IC-281H_481H_manuale_utente_italiano.pdf | 6014 kB |
| IC-281H_service_manual.pdf | 14790 kB |
| IC-281H_user_manual.pdf | 4073 kB |
 IC-281_schrmatic_diagram.zip | 1335 kB |
