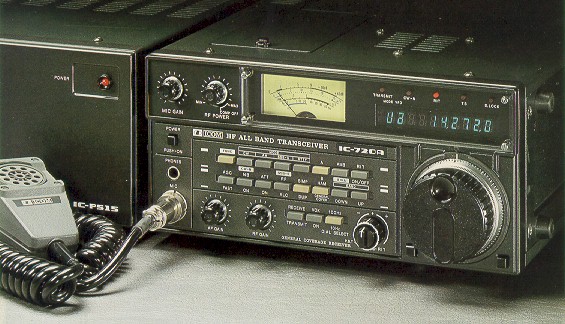

| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.1-30 MHz |
| Mode: | SSB/CW/AM |
| RF Power output: | 100 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 900 mA TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 241*111*311 mm |
| Weight: | 7.5 Kg |
| Manufactured: | Japan, 1980-198x (Discontinued) |
 IC-720_modifications.zip | 90 kB |
 IC-720_service_manual.pdf | 25145 kB |
| IC-720_user_manual.pdf | 3072 kB |
