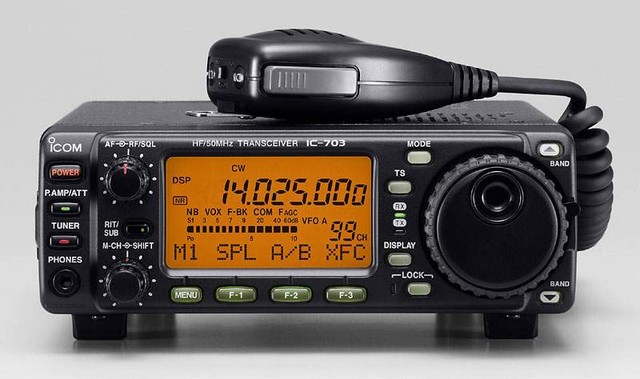

| Type: | Amateur HF/VHF transceiver |
| Frequency range: | 10-160 m + WARC/6 m |
| Mode: | AM/FM/SSB/CW/RTTY |
| RF Power output: | 0.1-10 / 0.1-10 W in 5 steps |
| Sensitivity: | SSB/CW/RTTY: 0.16 uV (10 dB S/N @ 1.8-30 MHz) |
| Selectivity: | N/A |
| Image rejection: | Better than 70 dB |
| Voltage: | 9-15.9 VDC |
| Current drain: | RX: 250-450 mA TX: Max 3 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 167*58*200 mm |
| Weight: | 2 Kg |
| Manufactured: | Japan, 2002-200x (Discontinued) |
| Other: | Built-in memory keyer and auto-AT. DSP 105 memories. New price 2008 in Sweden: 10500:- SEK |
 IC-703_modifications.zip | 733 kB |
 IC-703_schematic_diagram.pdf | 7851 kB |
| IC-703_service_manual.pdf | 2020 kB |
| IC-703_user_manual.pdf | 8151 kB |
