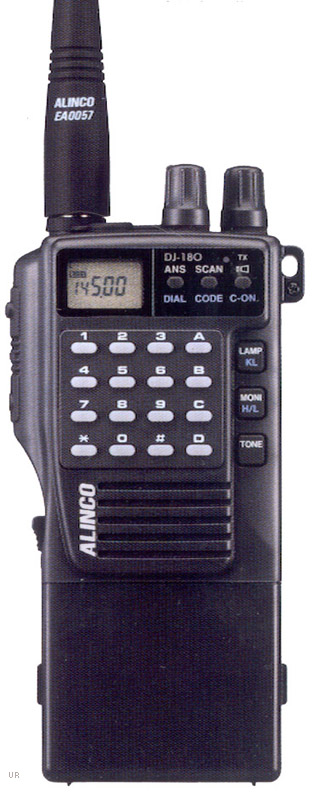

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz RX: 137-174 MHz (5 / 10 / 12.5 / 15 / 20 / 25 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 2-5 W (Depending on voltage) Lo: ? mW |
| Receiver system: | Dual conversion superheterodyne 1st IF: 21.4 MHz 2nd IF: 455 KHz |
| Sensitivity: | -16 dbu (12 dB SINAD) |
| Selectivity: | 24 KHz (-6 dB) |
| Image rejection: | N/A |
| Voltage: | 7.2 VDC (5.5-13.8 VDC) |
| Current drain: | RX: ? mA TX: ? A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 58*132*33 mm |
| Weight: | 350 gr |
| Manufactured: | Japan, 1996-199x (Discontinued) |
| Other: | 10 memories. CTCSS/PL |
 Alinco_DJ-180_DJ480_user_manual.pdf | 157 kB |
