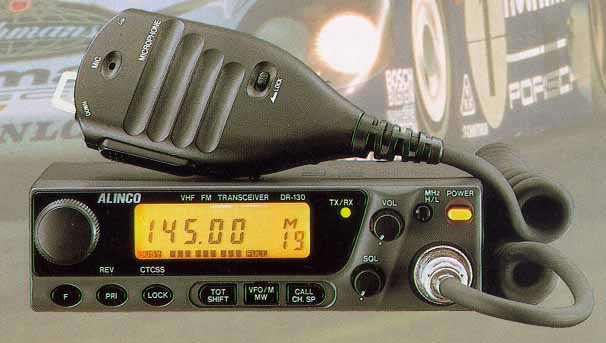

| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50 W Lo: 5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 800 mA TX: Max 10.5 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 140*40*155 mm |
| Weight: | 860 gr |
| Manufactured: | 19xx-19xx |
| Other: | CTCSS, 20 memories |
 Alinco-DR-130-330-430_user_manual.pdf | 399 kB |
 Alinco_DR-130_modifications.zip | 201 kB |
