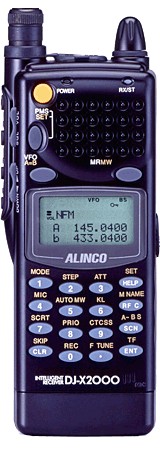

ricevitore multibanda portatile
| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: | 0.1-2150 MHz (0.05 / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 20 / 25 / 30 / 50 / 100 / 125 / 150 / 200 / 250 / 500 KHz steps) Cellular blocked in the US |
| Mode: | AM/FM/WFM/SSB/CW (WFM stereo via headphones) |
| Receiver system: | Triple conversion superheterodyne 1st IF: 814.5 / 304.34 MHz 2nd IF: 45.05 MHz 3rd IF: 455 KHz (WFM 10.7 MHz) |
| Sensitivity: | AM (10 dB S/N): 0.1-5 MHz: 1.5 uV 5-900 MHz: 1 uV NFM (12 dB SINAD): 5-900 MHz: 0.5 uV 900-2150 MHz: 2 uV WFM (12 dB SINAD): 5-900 MHz: 2 uV 900-2150 MHz: 4 uV SSB/CW (10 dB S/N): 0.1-5 MHz: 0.6 uV 5-900 MHz: 0.5 uV 900-2150 MHz: 1 uV |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 4.8-6 VDC internal or 10-16 VDC external |
| Current drain: | 50-150 mA |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 57*150*28 mm |
| Weight: | 200 gr |
| Manufactured: | 2000-200x |
| Other: | 2000 memories in 50 banks. Two-mode bug detector. Instant search function locks onto the nearest, strongest signal. Frequency counter. 160 seconds of digital recording. Speech descrambler (excluded in US version) CTCSS. Low power transceiver function (excluded in US & europe version). PC programmable. New price 2001 in the US: $835.00 New price 2004 in Sweden: 5990:- SEK |
 dj-x2000_user_manual.pdf | 3035 kB |
