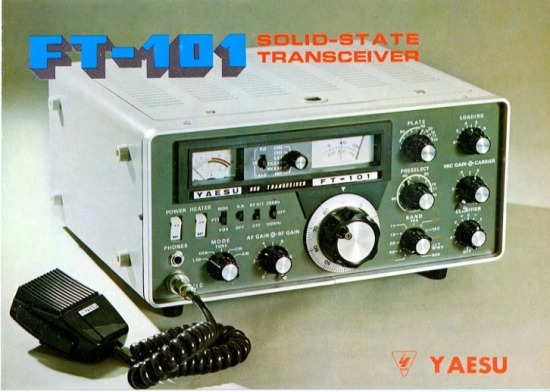

| Type: | Amateur HF transceiver |
| Frequency range: | 10-80 m 26.9-27.5 MHz and 10-10.5 MHz (WWV) |
| Mode: | AM/SSB/CW |
| RF Power output: | SSB: 260 W (PEP input) CW: 180 W (input) AM: 80 W (input) |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC or mains |
| Current drain: | RX: 0.5 A TX: Max 20 A |
| Impedance: | 50-75 ohms, SO-239 |
| Dimensions (W*H*D): | 13.5*6*11.5 inches |
| Weight: | 30 Lbs |
| Manufactured: | Japan, 197x-197x |
| Other: | |
| Related documents: |
 FT-101 HF-Transceiver Web Page by NW2M | 270 kB |
| FT-101_service_manual.pdf | 32730 kB |
| modifiche ed aggiunte | 1032 kB |
| manuale d'istruzione | 8618 kB |
