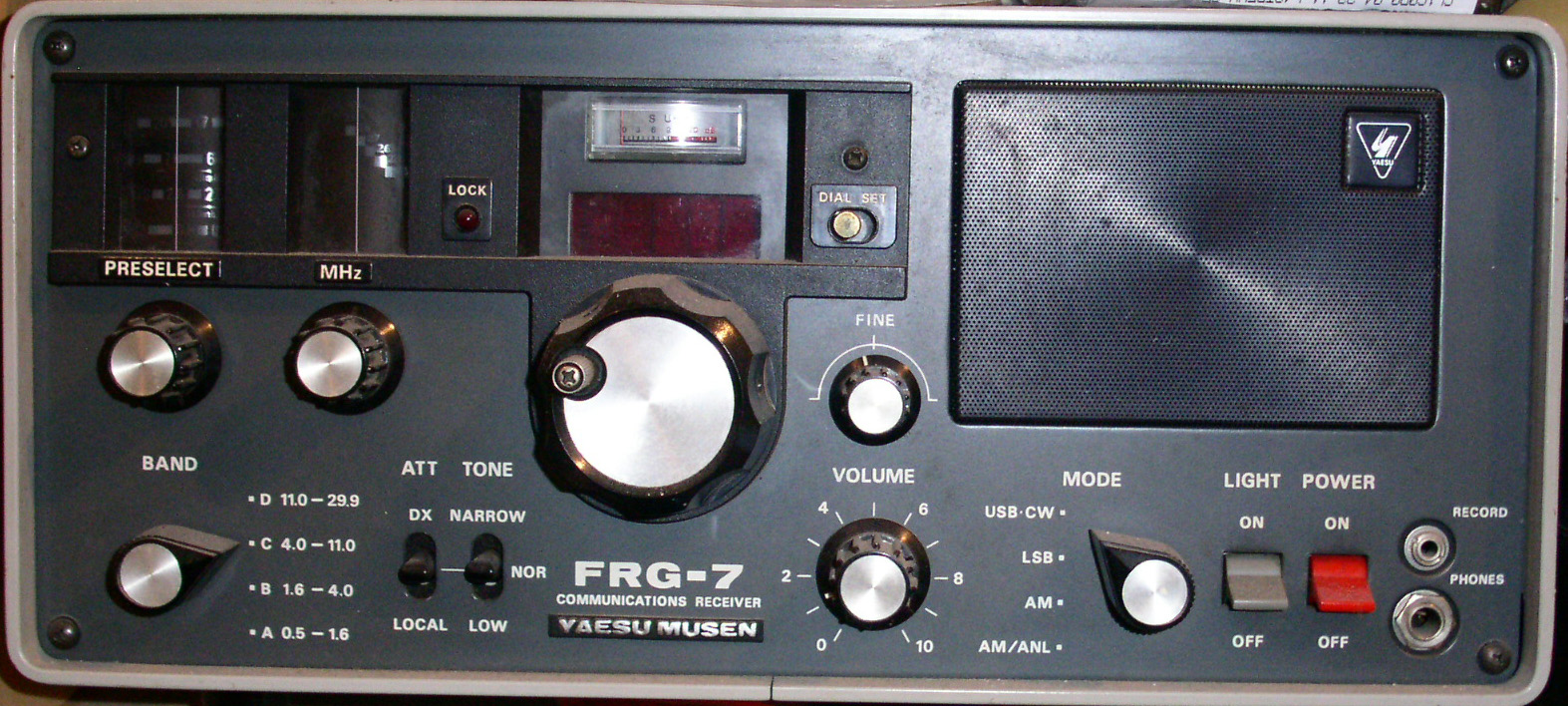

ricevitore HF
| Type: | HF receiver |
| Frequency range: | 0.5-30 MHz in four bands |
| Mode: | AM/SSB/CW |
| Receiver system: | Triple conversion superheterodyne 1st IF: 54.6-55.5 MHz 2nd IF: 2.1-3 MHz 3rd IF: 455 KHz |
| Sensitivity: | AM: <2 uV (10 dB S/N) SSB/CW: <0.7 uV (10 dB S/N) |
| Selectivity: | +/-3 KHz (-6 dB), +/-7 KHz (-50 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC or mains + battery option |
| Current drain: | Max ? mA |
| Impedance: | 1.6 MHz=50 ohms, SO-239 |
| Dimensions (W*H*D): | 340*153*285 mm |
| Weight: | 7 Kg |
| Manufactured: | Japan, 1976-1980 (Discontinued) |
| Other: | Early versions did not feature the fine tuning knob. New price 1977 in Sweden: 1995:- SEK |
 FRG-7_manuale_italiano.pdf | 2711 kB |
 FRG-7_modifiche.zip | 1677 kB |
| FRG-7_schematic_diagram.pdf | 175 kB |
| FRG-7_user_manual.pdf | 3431 kB |
