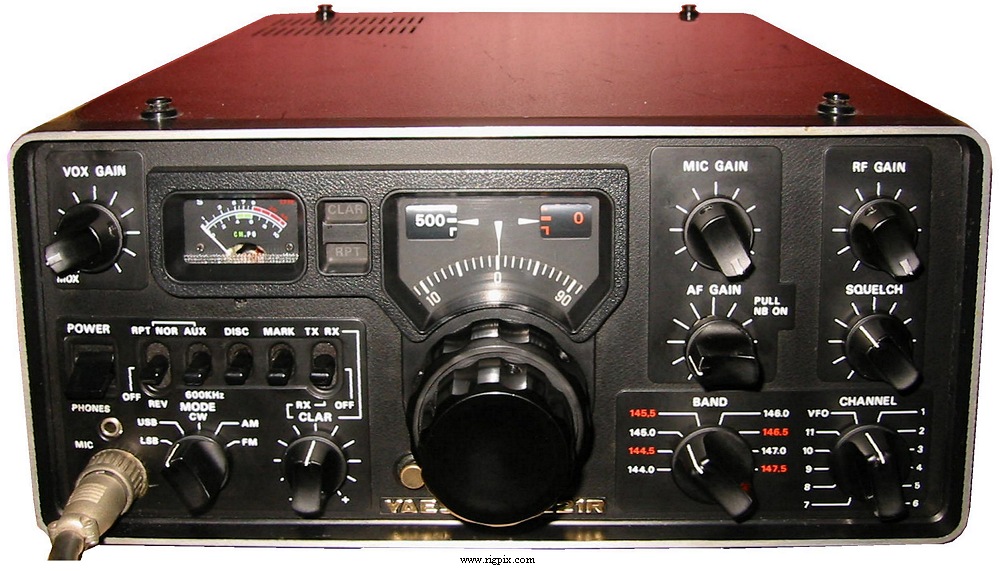

Yaesu FT-221 - RICETRASMETTITORE VHF
| Type: | Amateur VHF transceiver |
| Frequency range: | 144-148 MHz in 500 KHz segments |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | AM: 2.5 W FM/CW: 14 W SSB: 12 W PEP |
| Receiver system: | N/A |
| Sensitivity: | AM: 1.0 uV (10 dB S/N) FM: 0.75 uV (20 dB QS) SSB/CW: 0.5 uV (10 dB S/N) |
| Selectivity: | AM/SSB/CW: 2.4 KHz (-6 dB), 4.1 KHz (-60 dB) FM: 12 KHz (-6 dB), 24 KHz (-60 dB) |
| Image rejection: | 60 dB |
| Voltage: | 12-14.5 VDC or mains |
| Current drain: | RX: 0.6 A TX: Max 3 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 280*125*295 mm |
| Weight: | 8.5 Kg |
| Manufactured: | Japan, 197x-19xx (Discontinued) |
| Other: | New price 1977 in Sweden: 3495:- SEK |
 FT-221 - mod | 222 kB |
 FT-221 - service manual | 17983 kB |
| FT-221 - user manual | 3559 kB |
