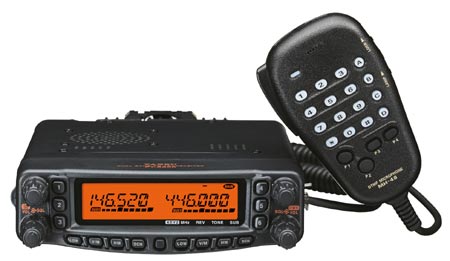

144/430 MHz "Full-Duplex"
Type: | Amateur VHF/UHF transceiver |
Frequency range: | TX: 144-146 / 430-440 MHz (Europe) TX: 144-148 / 430-450 MHz (USA) RX: 108-520 / 700-1000 MHz (Cellular blocked in the US) |
Mode: | TX: FM/FMN RX: AM/FM/FMN |
RF Power output: | Hi: 50/35 W Mid: 20/20 W Lo2: 10/10 W Lo1: 5/5 W |
Sensitivity: | Better than 0.2 uV (12 dB SINAD) |
Selectivity: | 8 KHz (-6 dB), 30 KHz (-60 dB) |
Image rejection: | N/A |
Voltage: | 13.8 VDC +/- 15% |
Current drain: | RX: 0.5-? A TX: Max 8.5 A |
Impedance: | 50 ohms, SO-239 |
Dimensions (W*H*D): | 140*42*168 mm |
Weight: | 1 Kg |
Manufactured: | 2003-200x |
Other: | 1054 memories. DTMF, CTCSS & DCS 9K6 packet ready. Twin RX |
