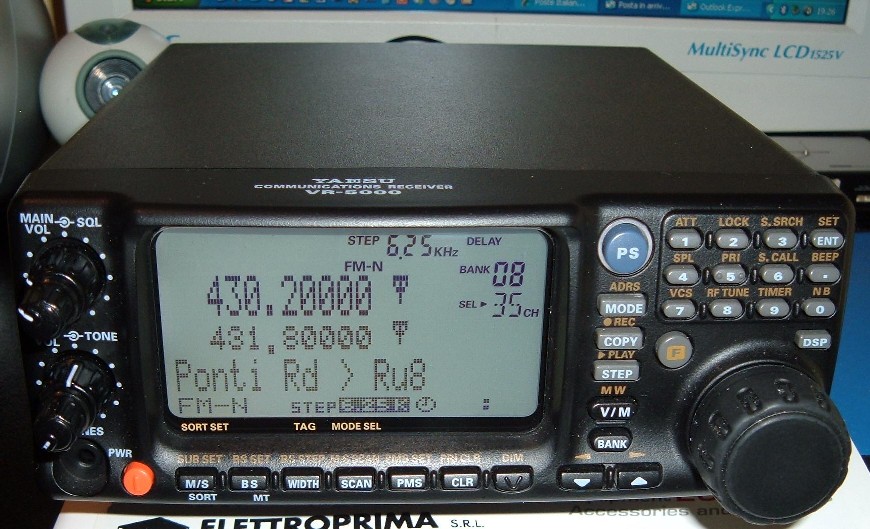

| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: | 0.1-2600 MHz 20/100/500 Hz and 1/5/6.25/9/10/12.5/20/25/50/100/500 KHz steps |
| Mode: | AM/NAM/WAM/NFM/WFM/SSB/CW |
| Receiver system: | N/A |
| Sensitivity: | AM (10 dB S/N) 0.2-0.5 MHz: 10.8 uV 0.5-1.8 MHz: 4 uV 1.8-4 MHz: 2.5 uV 4-30 MHz: 1.1 uV NFM (12 dB SINAD) 28-30 MHz: 0.35 uV 30-2000 MHz: 0.45 uV 2000-2600 MHz: 0.8 uV WFM (12 dB SINAD) 30-2000 MHz: 1.5 uV SSB/CW (10 dB S/N) 0.2-0.5 MHz: 4.8 uV 0.5-1.8 MHz: 1 uV 1.8-4 MHz: 0.6 uV 4-30 MHz: 0.3 uV 30-2000 MHz: 0.3 uV 2000-2600 MHz: 0.5 uV |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.5 VDC +/- 15% |
| Current drain: | Max 0.7 A |
| Impedance: | 50 ohms, SO-239 and 450 ohms, spring terminals (Yup! It still sports that crappy "UHF" jack. Oh why?!) |
| Dimensions (W*H*D): | 180*70*203 mm |
| Weight: | 1.9 Kg |
| Manufactured: | Japan, 2000-200x |
| Other: | 2000 memories. Real-time band-scope, world clock. NB. VCS. Alpha tags. DSP (DSP-1), Voice synthesizer (FVS-1A) and Voice recording (DVS-4) options Early versions had several problems. Newer versions are improved in both hard- and firmware |
 VR-5000 - ARRL - test | 199 kB |
| VR-5000 - schema elettrico | 16282 kB |
| VR-5000 - manuale utente italiano | 2082 kB |
