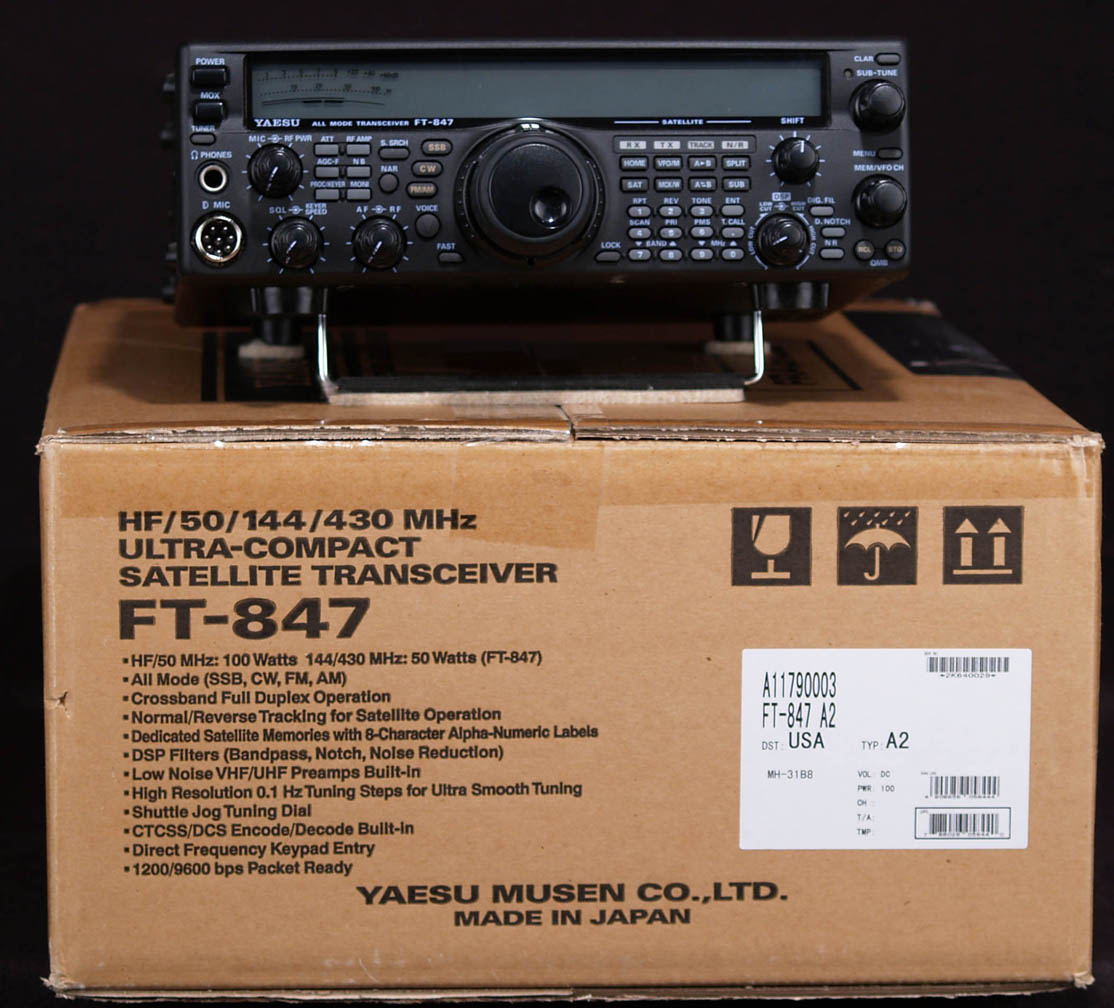

FT-847
Type:Amateur HF/VHF/UHF transceiver
Frequency range:TX: 10-160 m + WARC/ 50-54 / 144-146 / 430-440 MHz (also 4 meters in the UK)
RX: 0.1-30 / 36-76 / 108-174 / 420-512 MHz
Mode:AM/FM/SSB/CW
RF Power output:FM/SSB/CW: 100/100/50/50 W
AM: 25/25/12.5/12.5 W
Sensitivity:N/A
Selectivity:N/A
Image rejection:N/A
Voltage:13.8 VDC
Current drain:RX: Max 2 A
TX: Max 22 A
Impedance:50 ohms
Dimensions (W*H*D):260*86*270 mm
Weight:7 Kg
Manufactured:Japan, 1998-2005 (Discontinued)
Other:9K6 packet ready

Allegati:
Scarica questo file (FT-847-Brochure.pdf)FT-847 - Brochure2998 kB
Scarica questo file (FT-847_ARRL_test.pdf)FT-847 - ARRL test346 kB
Scarica questo file (FT-847_italiano_errata_corrige.pdf)FT-847_italiano_errata_corrige.pdf34 kB
Scarica questo file (FT-847_Opr Man.pdf)FT-847 - user manual english8863 kB
Scarica questo file (FT-847_service_manual.pdf)FT- 847 - Service Manual15611 kB
Scarica questo file (ft847_schematics.zip)FT-847 - Schematics5740 kB
