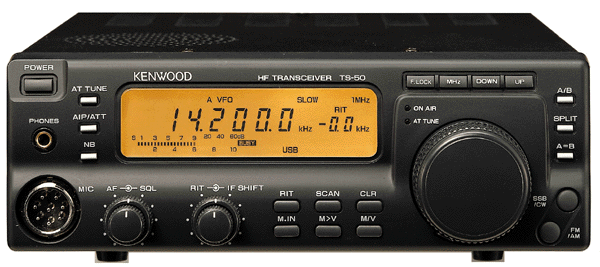

TS-50S Small Multifunction HF Transceiver
Mount it in a vehicle, take it on a DX-pedition or use it as a permanent base station transceiver and you'll see that the compact TS-50S packs a hefty punch. The easy to use menu system adds flexibility and the powerful cooling fan with heat sink ensures stable operation in any situation.
Features :
- Super-Compact, 100 W, 160 m to 10 m Transceiver, 500 kHz to 30 MHz General Coverage Receiver
- DDS (Direct Digital Synthesizer) with "Fuzzy Logic" Control
- AIP System
- 100 Memory Channels
- CW Reverse
- Menu System
General specifications :
- Mode A1A (CW), J3E (SSB), A3E (AM), F3E (FM)
- Memory Channels 100
- Antenna Impedance 50 Ohm
- Power Requirement 13.8 V DC ±15%
- Power Consumption
- Receive (no signal) 1.45 A
- Transmit (max.) 20.5 A
- Temperature Range -20°C ~ +60°C
- Frequency Stability
- Within ±10 x 10-6 (-10°C ~ +50°C)
- Within ±0.5 x 10-6 (-10°C ~ +50°C with SO-2)
- Dimensions, projections not included (WxHxD) 179 x 60 x 233 mm
- Weight (approx.) 2.9 kg
Transmitter specifications :
- Frequency Range (* Europe, ** Belgium)
- 160 m Band 1.8 / 1.81* / 1.83** to 1.85** / 2.0 MHz
- 80 m Band 3.5 to 3.8* / 4.0 MHz
- 40 m Band 7.0 to 7.1* / 7.3 MHz
- 30 m Band 10.1 to 10.15 MHz
- 20 m Band 14.0 to 14.35 MHz
- 17 m Band 18.068 to 18.168 MHz
- 15 m Band 21.0 to 21.45 MHz
- 12 m Band 24.89 to 24.99* 25.0 MHz
- 10 m Band 28.0 to 29.7 MHz
- Output Power
- SSB / CW / FM 100 W
- AM 25 W
- Modulation
- SSB Balanced Modulation
- FM Reactance Modulation
- AM Low-Power Modulation
- Spurious Response Less than -50 dB
- Carrier Suppression More than 40 dB
- Unwanted Sideband Suppression More than 40 dB
- Maximum Frequency Deviation (FM) ±5 kHz
- Frequency Response (SSB) 400 ~ 2600 Hz (Less than -10 dB)
- Microphone Impedance 600 Ohm
Receiver specifications :
- Circuitry
- SSB / CW / AM
- Double Conversion System
- FM Triple
- Conversion System
- SSB / CW / AM
- Frequency Range 500 kHz ~ 30 MHz
- Intermediate Frequency
- 1st IF 73.045 MHz
- 2nd IF 10.695 MHz
- 3rd IF 455 kHz (FM only)
- Sensitivity
- SSB / CW (at 10dB S+N/N, 500kHz ~ 30MHz)
- Less than 0.25 µV
- AM (at 10dB S+N/N, 500kHz ~ 30MHz)
- Less than 2.5 µV
- FM (12 dB SINAD, 28 ~30 MHz)
- Less than 0.5 µV
- SSB / CW (at 10dB S+N/N, 500kHz ~ 30MHz)
- Selectivity
- SSB / CW
- More than 2.2 kHz (-6 dB),
- Less than 4.8 kHz (-60 dB)
- AM
- More than 5 kHz (-6 dB),
- Less than 40 kHz (-60 dB)
- FM
- More than 12 kHz (-6 dB),
- Less than 25.0 kHz (-50 dB)
- SSB / CW
- Image Ratio More than 70 dB
- IF Rejection More than 80 dB
- RIT Variable Range More than ±1.1 kHz
- Squelch Sensitivity
- SSB / CW / AM (500kHz ~ 30MHz)
- Less than 2 µV
- FM (28 ~ 30 MHz)
- Less than 0.32 µV
- SSB / CW / AM (500kHz ~ 30MHz)
- Audio Output Power 2 W (8 Ohm at 5% distortion)
- Audio Output Impedance 8 Ohm
