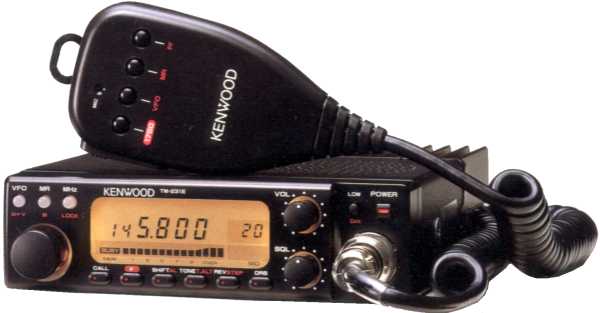

Kenwood TM-231 - Monobanda VHF Kenwood in banda radioamatoriale con tre livelli di potenza selezionabili. Di seguito le specifiche, allegati manuali ed altre info.
| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50 W Mid: 10 W Lo: 2 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image response: | N/A |
| Voltage: | 11-16 VDC |
| Current drain: | RX: Max 700 mA TX: Max 11 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*40*160 mm |
| Weight: | 1.2 Kg |
| Manufactured: | 1989-19xx |
| Other: | 20 memories New price 1989 in Sweden: 3890:- SEK |
| Related documents: |
Repair and Modification of the Kenwood TM-231 "Vintage" Mobile Radio
Kenwood TM231E/231A Mod 2 Meter Radio
 TM-231 - manuale d'istruzioni english | 2855 kB |
 TM-231_modifications.zip | 79 kB |
| TM-231_schematic_diagram.pdf | 288 kB |
| TM-231 - service manual | 7412 kB |
