TH-75 TH-75A TH-75E

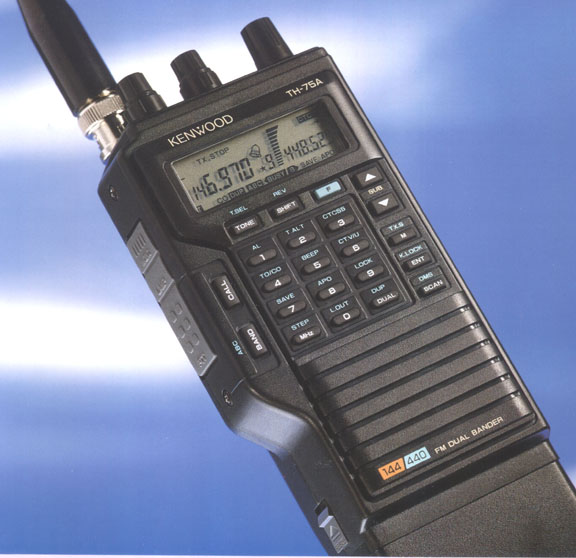

The Kenwood TH-75A is a dual-band HT for 144 and 440 MHz. This radio features dual receive with dual displays. You can adjust the volume on the main and sub band from the top of the radio. Auto repeater offset is featured for 2 meters. Enjoy ten memories per band. Multiple scanning modes are supported with carrier operated or time operated scanning. There is an auto-battery saver circuit and and auto-power off function.

The receive range of this HT is:  140-164 and 438-450 MHz. Two RF output levels are provided:  5.0/0.5 watts (with 12VDC input). 2.28 x 7.05 x 1.16 inches 1.15 Lbs. (58x179x30mm 520g)



Features
  • Large LCD Display
  • 20 Memories
  • Dual Receive
  • Encode/Decode Built In
  • Cross Band Operation
  • Auto Battery Saver Circuit
  • Multi Scan Function



Allegati:
Scarica questo file (Kenwood-TH-75.pdf)TH-75 - manual english1658 kB
Scarica questo file (TH-75_modifications.zip)TH-75_modifications.zip3 kB
Scarica questo file (TH-75_schemi.pdf)TH-75 - Schemi elettrici586 kB
Scarica questo file (TH75_service.pdf)TH-75 - manual service english4622 kB
