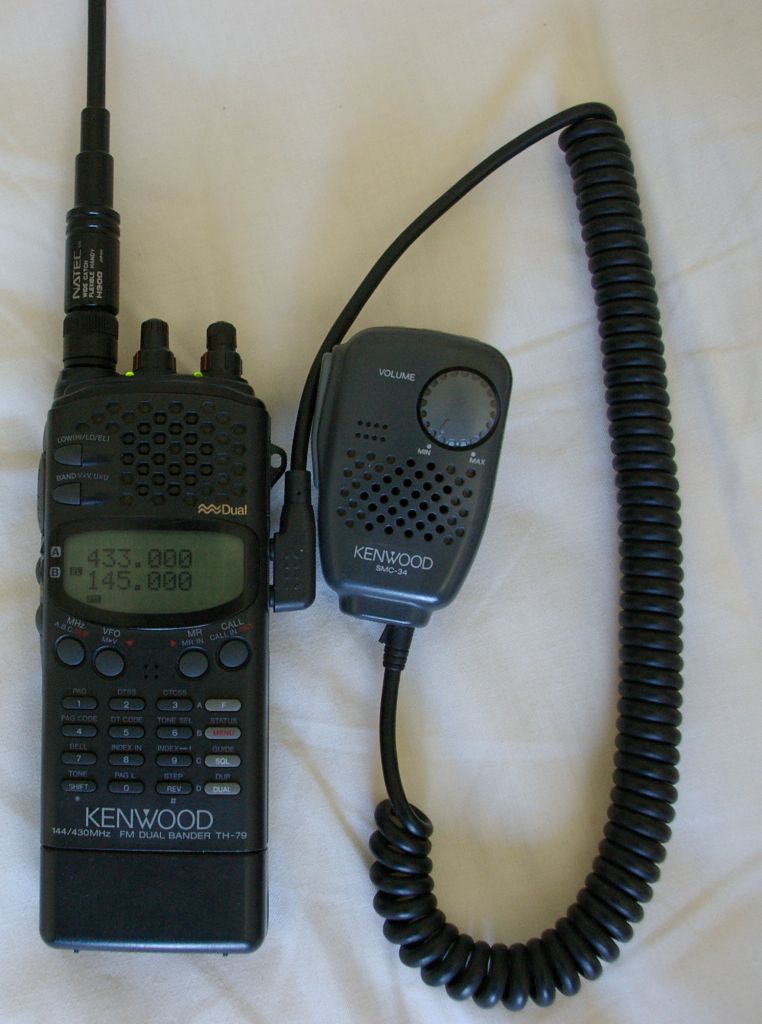

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-146 / 430-440 MHz |
| Mode: | FM |
| RF Power output: | Hi: 1.5-5 / 1.5-5 W (depending on voltage) Lo: 0.5 / 0.5 W El: 30 / 30 mW |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 5.5-16 VDC |
| Current drain: | Rx: Max 80 mA TX: Max 1.8 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 56*129.5*24.5 mm (with PB-32) |
| Weight: | 320 gr (with PB-32, antenna, handstrap and belt hook) |
| Manufactured: | 1994-199x (Discontinued) |
| Other: | 80 memories. Twin RX New price 1994 in Sweden: 6775:- SEK |
 TH-79A_TH-79E_manuale_italiano.pdf | 9815 kB |
| TH-79_block_diagram.pdf | 139 kB |
 TH-79_modifications.zip | 331 kB |
| TH-79_schematic_diagram.pdf | 573 kB |
| TH-79_service_manual.pdf | 672 kB |
| TH-79_user_manual.pdf | 2580 kB |
