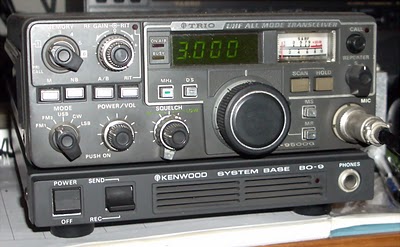

| Type: | Amateur UHF transceiver |
| Frequency range: | 430-440 MHz |
| Mode: | FM/SSB/CW |
| RF Power output: | 10 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 400 mA TX: Max 3 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | 1980-19xx (Discontinued) |
 TR-9500_schematic_diagram.pdf | 404 kB |
