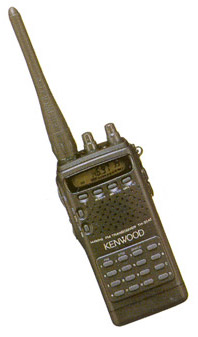

| Type: | Amateur UHF transceiver |
| Frequency range: | 430-440 MHz |
| Mode: | FM |
| RF Power output: | Hi: 2.5-5 W (depending on voltage) Lo: 0.5 W El: 30 mW |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 5-16 VDC |
| Current drain: | RX: Max 45 mA TX: Max 1.8 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 56*116.5*24.5 mm (with PB-32) |
| Weight: | 290 gr (with PB-32, antenna, handstrap and belt hook) |
| Manufactured: | 1994-19xx |
| Other: | 41 memories New price 1995 in Sweden: 3693:- SEK |
 TH-22-42_user_manual.pdf | 2653 kB |
| TH-42_schematic_diagram.pdf | 216 kB |
