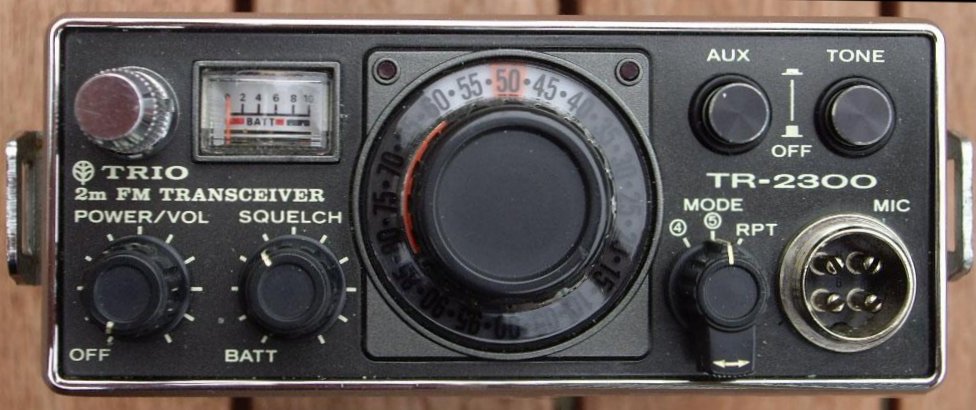

TR-2300



Type: Amateur VHF Transceiver
Frequency range: 144-146 MHz (25 KHz steps)
Modes: FM
RF Power output: 1 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 9.6-16 VDC
Current drain: RX: 45 mA
TX: 450 mA
Aerial input: 50 ohms, SO-239 or telescopic whip
Dimensions (W*H*D): 122*51*175 mm
Weight: 1.2 Kg (10*NiCd included)
Manufactured: Japan, 1979-19xx
Other: Illuminated dial
Allegati:
Scarica questo file (TR-2300_service_manual.pdf)TR-2300_service_manual.pdf5929 kB
