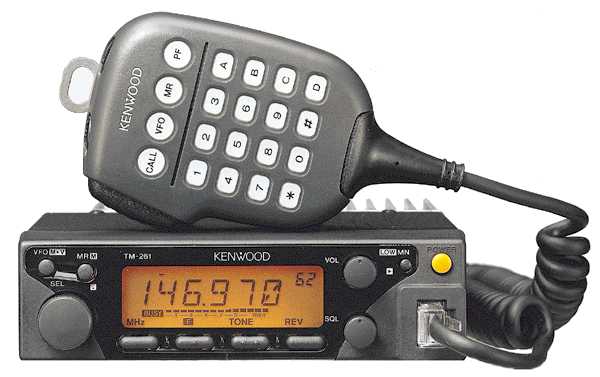

VHF - Veicolare| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-148 MHz RX: 118-174 MHz |
| Mode: | TX: FM RX: AM/FM |
| RF Power output: | Hi: 50 W Mid: 10 W Lo: 5 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image response: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 600 mA TX: Max 11 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 140*40*160 mm |
| Weight: | 1 Kg |
| Manufactured: | 19xx-19xx (Discontinued) |
| Other: | 61 memories |
 TM-261A_schematic_diagram.pdf | 660 kB |
| TM-261_service_manual.pdf | 1772 kB |
| TM-261_TM-461_user_manual.pdf | 2712 kB |
