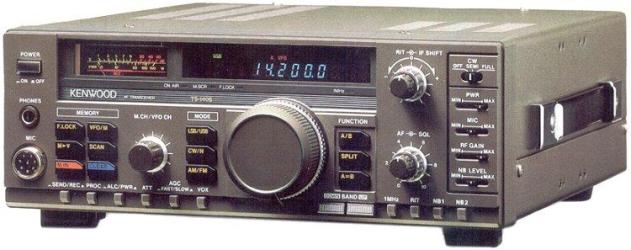

TS-140S - Ricetrasmettitore HF SSB, CW, AM, FM
| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.05-35 MHz |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | AM: Max 40 W FM: Max 50 W SSB/CW: Max 100 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 12-16 VDC |
| Current drain: | RX: 1.5 A TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 270*96*270 mm |
| Weight: | 6.1 Kg |
| Manufactured: | 1987-19xx (Discontinued) |
| Other: | 31 memories. New price 1988 in Sweden: 9500:- SEK |
 TS-140S_block_diagram.pdf | 1 kB |
| TS-140S_manuale_utente_italiano.pdf | 3804 kB |
 TS-140S_modifiche.zip | 1 kB |
| TS-140S_schematic_diagram.pdf | 5132 kB |
| TS-140S_TS-680S_service_manual.pdf | 9173 kB |
| TS-140S_user_manual.pdf | 1203 kB |
| TS-140S_user_manual_FR.pdf | 27749 kB |
