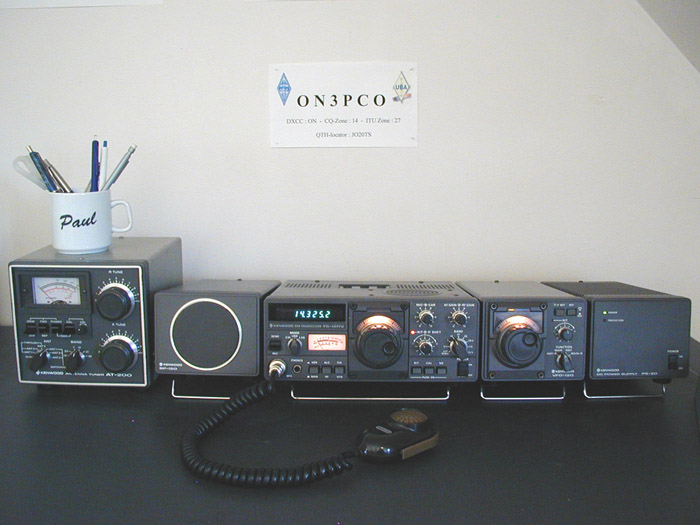

TS-120V - Ricetrasmettitore HF SSB e CW
| Type: | Amateur HF transceiver |
| Frequency range: | 10-80 m |
| Mode: | SSB/CW |
| RF Power output: | Max 10 W |
| Receiver system: | N/A |
| Sensitivity: | 0.25 uV (10 dB S/N) |
| Selectivity: | SSB: 2.4 KHz (-6 dB), 4.4 KHz (-60 dB) CW: 500 Hz (-6 dB), 1.8 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 12-16 VDC |
| Current drain: | RX: 2 A TX: 5 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 241*94*235mm |
| Weight: | 4.9Kg |
| Manufactured: | Japan, 1978-19xx (Discontinued) |
| Other: | Vox, NB, RIT, Digital readout |
 TS-120V_user_manual.pdf | 8655 kB |
 TS_120V_modifiche.zip | 460 kB |
