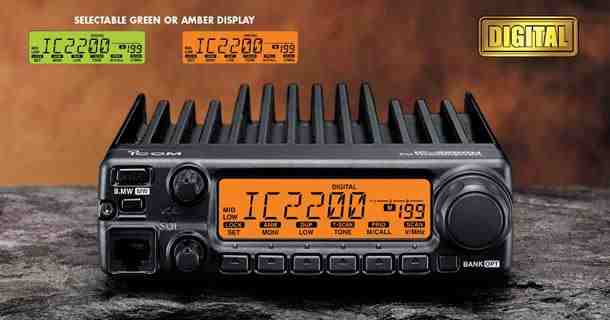

Veicolare monobanda VHF - Funzionalità D-STAR opzionale
| Frequency range: | TX: 144-146 MHz (Europe) TX: 144-148 MHz (USA) RX: 118-174 MHz |
| Mode: | TX: FM/FMN (DV (D-Star) option) RX: AM/FM/FMN (DV (D-Star) option) |
| RF Power output: | Hi: 65 W Mid1: 25 W Mid2: 10 W Lo: 5 W |
| Receiver system: | Dual conversion superheterodyne 1st IF: 21.7 MHz 2nd IF: 450 KHz |
| Sensitivity: | 0.133 uV (12 dB SINAD) |
| Selectivity: | FM: >6 KHz (-6 dB), <14 KHz (-60 dB) FMN: >3 KHz (-6 dB), <9 KHz (-60 dB) |
| Image rejection: | >60 dB |
| Voltage: | 13.8 VDC +/- 15% |
| Current drain: | RX: 0.8-1 A TX: Max 15 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (H*W*D): | 140*40*146 mm |
| Weight: | 1.25 Kg |
| Manufactured: | Japan, 2004-200x |
| Other: | Digital voice/data option (UT-118 (frmr UT-115)) Please note that this requires at least two similarly equipped radios. 207 memories. Weather channel with alert (US version only) CTCSS, DTCS and DTMF. Multi-color LCD. New price 2008 in Sweden: 3440:- SEK |
