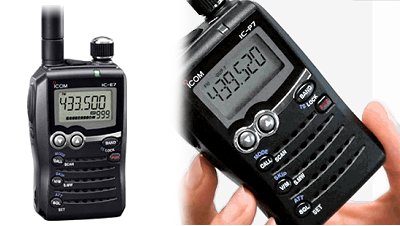

Portatile duobanda VHF/UHF di piccole dimensioni
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX/RX: 144-146 / 430-440 MHz RX: 0.495-999.990 MHz 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 200 KHz steps |
| Mode: | TX: FM RX: AM/FM/WFM |
| RF Power output: | Hi: 1.5 / 1 W Lo1: 0.1 / 0.1 W |
| Sensitivity: | AM (10 dB S/N) 0.495-5 MHz: 2.2 uV 5-30 MHz: 1.4 uV 118-137 MHz: 1.4 uV FM (12 dB SINAD) 30-90 MHz: 0.45 uV 90-144 MHz: 0.2 uV 144-148 MHz: 0.18 uV 148-180 MHz: 0.2 uV 350-470 MHz: 0.18 uV 600-940 MHz: 1.4 uV 940-999.990 MHz: 2.5 uV WFM (12 dB SINAD) 76-108 MHz: 1.8 uV uV 600-800 MHz: 2.5 uV |
| Selectivity: | (Ham bands) AM/FM: 12 KHz (-6 dB), 30 KHz (-60 dB) WFM: 150 KHz (-10 dB), 700 KHz (-20 dB) |
| Image rejection: | >40 dB |
| Voltage: | 3.7 VDC (Lithium-Ion battery pack, 1800 mAh) |
| Current drain: | RX: 80-150 mA TX: Max 1.5 A |
| Impedance: | 50 ohms, SMA |
| Dimensions (W*H*D): | 47*81*28 mm |
| Weight: | 160 gr (with battery and antenna) |
| Manufactured: | Japan, 2005-200x |
| Other: | 1250 memories in 18 banks. Alpha tags. CTCSS/DTCS New price 2008 in Sweden: 2995:- SEK |
 IC-E7 - Service Manual | 3237 kB |
| IC-E7 - User Manual | 4973 kB |
