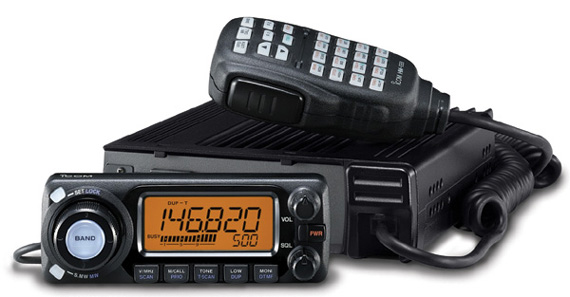

IC208H

VHF/UHF - Veicolare

General
  • Frequency coverage (Unit: MHz)
    • VHF: Tx: 144-148, Rx: 118-174 (Guaranteed 144-148)
    • UHF: Rx/Tx: 440-450
  • Mode: FM, AM* (* U.S.A. version, RX only; 118-136 MHz; not guaranteed.)
  • Number of memory channels: 512 (Including 2 call and 10 scan edges)
  • Antenna connector: SO-239 (50 ohms)
  • Power Supply requirement : 13.8 V DC +/-15%
  • Useable temperature range : +14°F to +140°F (-10°C to +60°C)
  • Frequency stability: +/-10 ppm
  • Tuning step increments: 5, 10, 12.5, 15, 20, 25, 30, 50, 100 and 200 kHz
  • Current drain (at 13.8 V DC)
    • Receive squelched 0.8 Amps
    • Maximum audio output 1.0 Amps
    • Transmit at high power VHF 12 Amps, UHF 11.5 Amps
  • Dimensions (projections not included):
    • 5 1/2 (W) x 1 9/16 (H) x 7 5/16 (D) inches
    • 141(W) x 40(H) x 185.4(D) mm
  • Weight: Approx. 2.65 lb. (1.2 kg)



Transmitter
  • Output power:
    • VHF 55 W, 15 W, 5 W selectable
    • UHF 50 W, 15 W, 5 W selectable
  • Modulation system : variable reactance frequency modulation
  • Max. frequency deviation : ± 5.0 kHz
  • Spurious emissions : Less than -60 dB
  • Microphone connector : 8-pin modular jack (600 ohms)



Receiver
  • Receive system: Double conversion superheterodyne
  • Intermediate frequencies: 1st 46.05 MHz, 2nd 450 kHz
  • Sensitivity: Less than 0.18 micro V for 12dB SINAD (144/430 bands only)
  • Squelch Sensitivity: 0.13 µV (at threshold)
  • Selectivity :
    • More than 12kHz/ -6 dB
    • Less than 30 kHz/ -60dB
  • Spurious rejection ratio: More than 60 dB
  • Audio output (at 13.8 V DC): More than 2.0 W at 10% distortion with an 8-ohm load
  • Ext. speaker connector: 2-conductor 1/8 inch (3.5 mm) 8 ohms
  • Specifications are subject to change without notice or obligation.
Allegati:
Scarica questo file (IC-208H.pdf)IC-208H - manuale d'istruzioni english3218 kB
Scarica questo file (IC-208H_service_manual.pdf)IC-208H_service_manual.pdf4195 kB
Scarica questo file (Ic-208_eprom_reset.txt)Ic-208_eprom_reset.txt0.7 kB
Scarica questo file (Icom_IC-208_manuale_d_uso_ita.pdf)IC-208H - manuale d'istruzioni in italiano2995 kB
