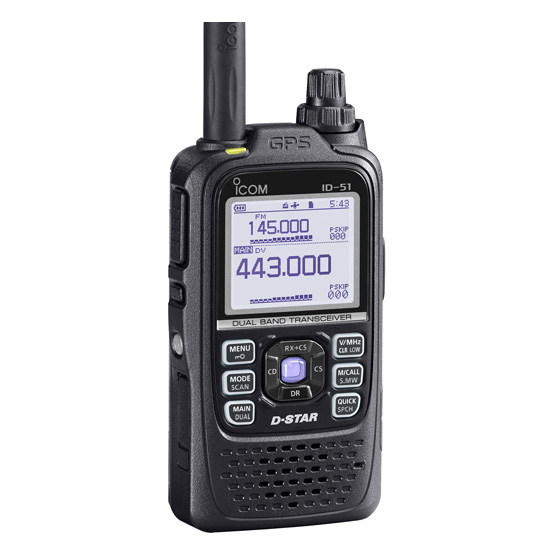

Icom ID-51 - ricetrasmettitore VHF UHF D-Star con GPS integrato
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz RX: 0.52-1.710 / 76-108 / 108-174 / 380-479 MHz (5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz steps) |
| Mode: | TX: FM/NFM and DV (GMSK: 4.8 kbps voice), Improved DR-mode RX: AM/FM/NFM and DV (GMSK: 4.8 kbps voice), Improved DR-mode |
| RF Power output: | Hi: 5/5 W Mid: 2.5/2.5 W Lo2: 1/1 W Lo1: 500/500 mW S-lo: 100/100 mW |
| Receiver system: | N/A |
| Sensitivity: | FM/NFM: 0.18 uV (12 dB SINAD) DV: 0.28 uV (1% BER) |
| Selectivity: | FM: 55 dB NFM/DV: 50 dB |
| Image rejection: | N/A |
| Voltage: | 5.5-7.4 VDC (Alkaline or battery pack) or 10-16 VDC external |
| Current drain: | RX: 200-450 mA TX: Max 2.5 A |
| Impedance: | 50 ohms, SMA |
| Dimensions (W*H*D): | 58*105*26 mm |
| Weight: | 255 gr (with BP-271 and antenna) |
| Manufactured: | Japan, 2012-201x |
| Other: | D-Star concept. Built-in GPS with logging. CTCSS and DTCS 1304 memories. Micro SD card slot. 128*104 dot-matrix display Voice synthesizer. Voice memory. Voltage indicator. IPX7 waterproof Twin RX |
Options/Accessories:
| AD-92SMA BC-167SA/SD BC-202 BP-271 BP-272 BP-273 CP-12L CP-19R CS-51 CT-17 FA-S270C HM-75LS HM-153LS HM-166LS HM-186LS HS-94 HS-95 HS-97 LC-179 MB-127 OPC-254L OPC-2006LS OPC-2144 OPC-2218LU SJ-1 SP-13 |
BNC-to-SMA adapter Wall charger, 12 V/500 mA output Rapid desktop charger Li-Ion battery pack, 7.4 V/1200 mAh Li-Ion battery pack, 7.4 V/2000 mAh Battery case, 3*R6/AA Cigarette lighter cable with noise filter Cigarette lighter cable with DC-DC converter Cloning software CI-V level converter VHF/UHF antenna Remote control speaker-microphone Durable-type earphone-microphone Light-type earphone-microphone Compact-type speaker-microphone Earphone-headset (OPC-2006LS required) Behind-the-head headset (OPC-2006LS required) Throat microphone (OPC-2006LS required) Carrying case Alligator-type belt clip DC power cable VOX plug adapter cable Slim L-type plug adapter Data communication cable, USB type Silicon jacket case Earphone (OPC-2144 required) |
 ID-51A_E_Manual.pdf | 3068 kB |
| id51_preinfo.pdf | 495 kB |
