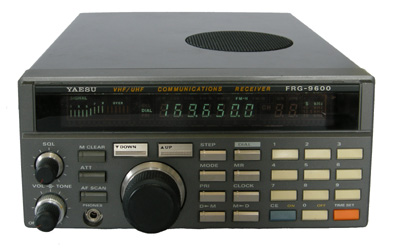

| Type: | VHF/UHF receiver/scanner |
| Frequency range: | 60-905 MHz (0.1 / 1 / 5 / 10 / 12.5 / 25 KHz steps) |
| Mode: | AM-N (2.4 KHz BW) AM-W (6 KHz BW) FM-N (15 KHz BW) FM-W (180 KHz BW) SSB (2.4 KHz BW) Up to 460 MHz only! |
| Receiver system: | Triple conversion superheterodyne 1st IF: 45.754 MHz 2nd IF: 10.7 MHz 3rd IF: 455 KHz - Ceramic filter: Murata CFW455E |
| Sensitivity: | AM-N: 1 uV (10 dB S+N/N) AM-W: 1.5 uV (10 dB S+N/N) FM: 0.5 uV (12 dB SINAD) WFM: 1 uV (12 dB SINAD) |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 12-15 VDC |
| Current drain: | Max 550 mA |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 180*80*220 mm |
| Weight: | 2.2 Kg |
| Manufactured: | Japan, 1985-19xx (Discontinued) |
| Other: | 100 memories. CAT-interface. TV tuner front end (!) New price 1985 in Sweden: 5450:- SEK |
 FM-IF-mc3357.pdf | 130 kB |
| FRG-9600_MANUALE_Italiano.pdf | 3919 kB |
| FRG-9600_Service_Manual.pdf | 7391 kB |
| PLL-mc14515x-2.pdf | 713 kB |
