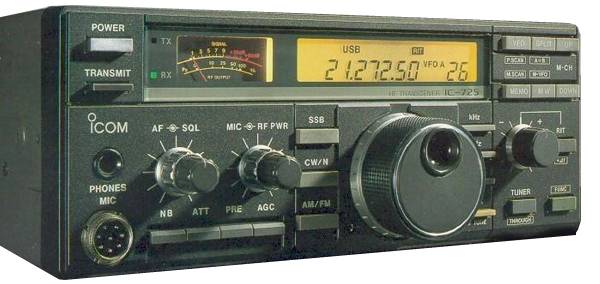

| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.5-30 MHz |
| Mode: | SSB/CW (AM/FM option) |
| RF Power output: | 100 W |
| Sensitivity: | AM: <2 uV (10 dB S/N) FM: <0.5 uV (12 dB SINAD) SSB/CW: <0.15 uV (10 dB S/N) |
| Selectivity: | AM: >6 KHz (-6 dB), <20 KHz (-60 dB) FM: >15 KHz (-6 dB), <30 KHz (-60 dB) SSB/CW: >2.3 KHz (-6 dB), <4 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 1.2-1.5 A TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 241*94*239 mm |
| Weight: | 4.7 Kg |
| Manufactured: | Japan, 1988-19xx (Discontinued) |
| Other: | New price 1988 in Sweden: 7990:- SEK |
 AH-3_User.pdf | 1048 kB |
| Ah4_Automatic_Hf_Antenne_Tuner-Service_Manual.pdf | 3580 kB |
| IC-725-user-manual.pdf | 3193 kB |
| IC-725_service manual.pdf | 11735 kB |
