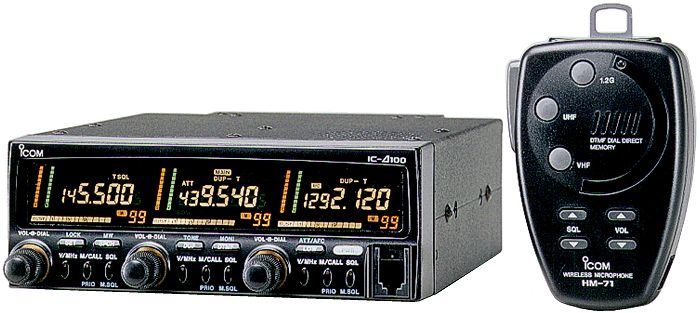

Icom tri bander 2/70/23 cm FM
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 / 1240-1300 MHz (Europe & Asia) RX: 118-174 / 320-479 / 1000-1400 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50/35/10 W Mid: ?/?/? W Lo: ?/?/? W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 3.2 A TX: Max 12 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 140*50*195 mm |
| Weight: | 2.1 Kg |
| Manufactured: | Japan, 1994-199x (Discontinued) |
| Other: | Triple RX |
 ic-delta-100_user_manual.pdf | 9366 kB |
| IC-DELTA100H_service_manual.pdf | 14693 kB |
| IC-DELTA100_manuale_utente_italiiano.pdf | 6746 kB |
